Fidas Fly

Mobile Particulate Measurement

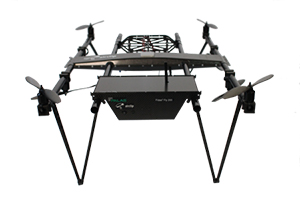

The Fidas® Fly 200 combines the utility of an ultra-light real-time dust monitor made by Palas® and a flight robot. As a drone it is able to approach different way points via manual controls or through the guidance of a GPS. The high-quality construction enables continuous operation for longer data acquisition periods with more than 100 flight hours. Changing battery or data loggers takes less than two minutes so ground time is kept to a minimum. The Fidas® Fly 200 simultaneously measures PM1, PM2.5, PM4, PM10, and TSP environmental mass fractions or respirable, thoracic, and inhalable mass fractions as per DIN EN 481.

It measures the particle number and particle size distribution in up to 64 size classes within the particle size range of 0.18 – 18 μm or 0.4 – 40 μm. The time resolution can be adjusted from one second to hours for continuous measurements.

The Fidas® Fly 200 is equipped with a data logger and 4 GB of CompactFlash storage. The firmware supports complete remote access with remote maintenance and optional data storage at www.palas.de/user. In addition, the software provides data management with the integrated data logger, export capabilities, and network support.

For longer quasi-stationary measurements in indoor areas we recommend the Fidas® 100 with integrated filter holder and a volume flow of 5 l/min. For stationary measurements outdoors, the Fidas® 200/200 S is recommended.

  • Online display of dust values and particle size distribution
  • Counting measuring method utilizes the highest resolution
  • Real-time measurement
  • Utilizes an LED light source
  • Up to four hours measuring time with battery operation
  • Live transfer of all relevant flight data and control data
  • Multiple flight modes including manual control with stabilization of position, automatic stabilization of height, dynamic stabilization of GPS position, automatic following of GPS routes, automatic taking off/landing
  • Fidas® data analyzer software for individual analysis of your measurement data on an external PC
  • Utilizes a 8-propellers-platform for higher stability
  • Little maintenance required
  • Easy to operate
  • Reliable functionality
  • Reduces your operating expenses!
  • Particle measurements: roadsides, quarries, coal tips, lignite opencast mining, etc.
  • Indoor air quality studies in factories
  • Exhaust gas characterization in high chimneys
  • Immission/emission measurement
  • Fidas Fly 100
  • Fidas Fly 200
